Over the past weeks, I’ve been working on localizing and extending the
translation system for the FrogPilot -
fork of OpenPilot open source car
driving assist projects.
This post summarizes the process, challenges, and solutions implemented —
especially around Qt translations and handling dynamic alerts.
Background
Qt provides a built-in translation system using:
tr("...")
for translatable strings inside QObject-based classes,QT_TRANSLATE_NOOP("Context", "Text")
for registering strings outside class contexts,.ts
files for storing translations (editable via Qt Linguist),.qm
files as compiled translation catalogs.
To enable language support and/or change the translation text, you need to
recompile the UI.
By default, most but not all UI strings in Frog\OpenPilot wrapped in translated
format with tr()
.
Some dynamic alerts and Python-sourced messages weren’t translatable at all.
Goals
- Enable a full Ukrainian translation of the UI.
- Fix missing strings in
.ts
catalogs. - Support dynamic alerts with parameters (e.g., “Calibration 12%”).
- Localize date/time formats and file size units.
- Contribute changes back upstream to FrogPilot.
Building and Deployment on Device and Mac
Working with OpenPilot and FrogPilot involves different environments: the target device (usually a comma 3x), local Mac development, and sometimes Docker containers for testing.
On-device build:
Building directly on the device ensures that all architecture-specific dependencies and Qt libraries match the runtime environment. This is the most reliable method to test translations and alerts in real conditions.Mac builds and containers:
Compiling on Mac or in containers can sometimes fail due to missing ARM cross-compilers, incompatible Qt versions, or file path issues. Often,.ts
updates work locally, but runtime tests may fail if the UI binary was not rebuilt for the target architecture. At least I was unable to assemble the UI natively on Mac or in a devcontainer.Branch strategy:
FrogPilot maintaines have two types of branches: built branches (compiled for the device) and dev branches (contains all files for building/development/translation). It is impossible to compile UI elements on the “compiled” branch. The dev branches are compiled automatically withscons
during booting device.Repo renaming trick:
Comma.ai’s auto-installer expects specific repo names (openpilot
). To make your own fork with name different thanopenpilot
you shoud temporary rename you repo toopenpilot
and back, this creates http redirect from old repo name.
Compiling and Updating Translations
To regenerate translation catalogs, Qt provides lupdate
:
lupdate -locations none \
-recursive selfdrive/ui frogpilot/ui \
-ts selfdrive/ui/translations/main_uk.ts \
-I . -no-obsolete
-locations none
avoids embedding file paths,-no-obsolete
removes vanished strings,- .ts files are edited in Qt Linguist,
- .qm files are built and loaded at runtime.
update_translations.py
script
The standard OpenPilot package includes helpr script, update_translations.py
,
which helps add and update translation languages.
- Regenerating .ts translation files from Qt UI source code.
- Calls lupdate recursively on selfdrive/ui and frogpilot/ui.
- Handles obsolete (vanished) strings and plural forms.
- Generates alerts_generated.h for offroad alerts JSON.
- Ensures that manual translations in .ts files are preserved while updating automatically discovered strings.
However, in real testing, you don’t need to update .ts
manually every time -
that is performed on the device during compilation, and there is no need to do
it manually. To add new language it is sufficient to add defenition to
/openpilot/selfdrive/ui/translations/languages.json
and run
the update_translations.py
script once.
The Challenge: Dynamic Alerts
OpenPilot displays alerts such as:
- Calibration in Progress: 12%
- Drive Above 15 mph
- Take Control, Turn Exceeds Steering Limit
These were hardcoded English strings assembled at runtime, and not present
in .ts
files.
That meant they could never be translated with the standard Qt pipeline.
My Solution: Alert Translation Map
I introduce a static translation map (in new alert_tr.h
alert translation file) containing known alert templates:
static const std::vector<AlertTranslation> alertTranslations = {
{"Calibration in Progress: %1%", QT_TRANSLATE_NOOP("Alerts", "Калібрування триває: %1%")},
{"Drive Above %1", QT_TRANSLATE_NOOP("Alerts", "Рухайтесь швидше ніж %1")},
};
Then vibe-coded a translateAlert()
function that:
- Matches the incoming alert text against known patterns (using
QRegularExpression
). - Applies
QObject::tr(...)
to load the proper translation. - Substitutes parameters (
%1
,%2
, …) with runtime values.
This way, even dynamic messages are properly localized.
Example: Integrating Dynamic Alert Translation
Dynamic alerts are generated at runtime, often containing parameters such as
percentages or speed values.
my translateAlert()
function handles this:
// alert_tr.h
inline QString translateAlert(const QString &text, const QStringList ¶ms = {}) {
for (const auto &alert : alertTranslations) {
QRegularExpression rx(alert.raw_text1); // can include (%1) placeholders
QRegularExpressionMatch match = rx.match(text);
if (match.hasMatch()) {
QString translated = QObject::tr(alert.tr_text1);
// automatically substitute %1, %2 ... if parameters are present
for (int i = 1; i < match.lastCapturedIndex() + 1; ++i) {
translated = translated.arg(match.captured(i));
}
return translated;
}
}
return text; // fallback to original text if no match
}
Usage in alerts.cc when drawing alerts:
if (alert.size == cereal::ControlsState::AlertSize::MID) {
p.setFont(InterFont(sidebarsOpen ? 78 : 88, QFont::Bold));
p.drawText(QRect(0, c.y() - 125, width(), 150),
Qt::AlignHCenter | Qt::AlignTop,
translateAlert(alert.text1));
p.setFont(InterFont(sidebarsOpen ? 56 : 66));
p.drawText(QRect(0, c.y() + 21, width(), 90),
Qt::AlignHCenter,
translateAlert(alert.text2));
}
With this setup:
- Any alert text defined in
alertTranslations
will be translated. - Placeholders (
%1
,%2
, …) are replaced at runtime with actual values. - Both text1 and text2 of the alert are translated independently, supporting single- or multi-line alerts.
My helper Script
Made helper python script that helps to fill translation dictionary array.
update_alerts.py
:
- Parses events.py for dynamic alerts strings.
- Extracts
StartupMessage Top/Bottom
. - Converts Python alert definitions into a C++ alertTranslations array with QT_TRANSLATE_NOOP.
- Handles parameters in alerts (%1, %2),
<br>
for multi-line messages. - Automatically rewrites alert_tr.h to include all known alerts for the UI.
The script requires refinement, as it does not count for complex alerts with high variability, so I had to manually refine the dictionary array a bit.
Localized Formatting
Me also updated date/time and file size displays to respect the selected locale:
QLocale locale(uiState()->language.mid(5));
QString date = locale.toString(QDate::currentDate(), "d MMMM yyyy");
and
if (totalSize >= GB)
return QString::number(totalSize / GB, 'f', 2) + QObject::tr(" GB");
else
return QString::number(totalSize / MB, 'f', 2) + QObject::tr(" MB");

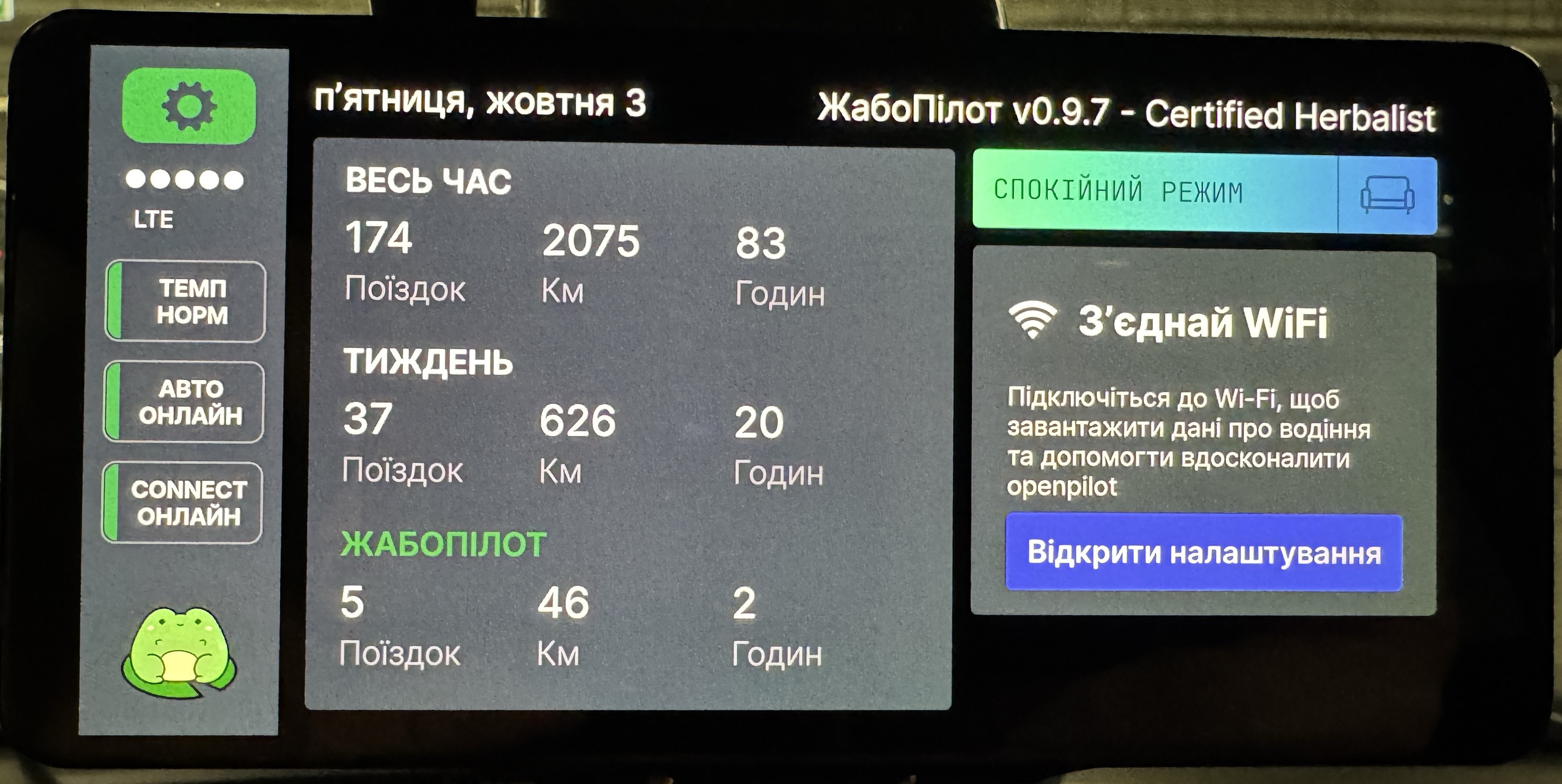

So users now see ГБ / МБ and 24-hour time where appropriate.
Lessons Learned
tr()
only works inside QObject contexts. For global maps,QT_TRANSLATE_NOOP
is required.lupdate
is strict: any string not wrapped intr()
orQT_TRANSLATE_NOOP
is invisible to the translation system.- Dynamic strings need patterns and a translation layer above the raw alerts.
Contribution
Me upstreamed the changes in this pull request: 👉 FrogPilot PR #282
If you’re interested in contributing translations:
- FrogPilot: Contributing Guidelines
- Qt Translations: Qt Linguist Manual
⸻
Final Thoughts

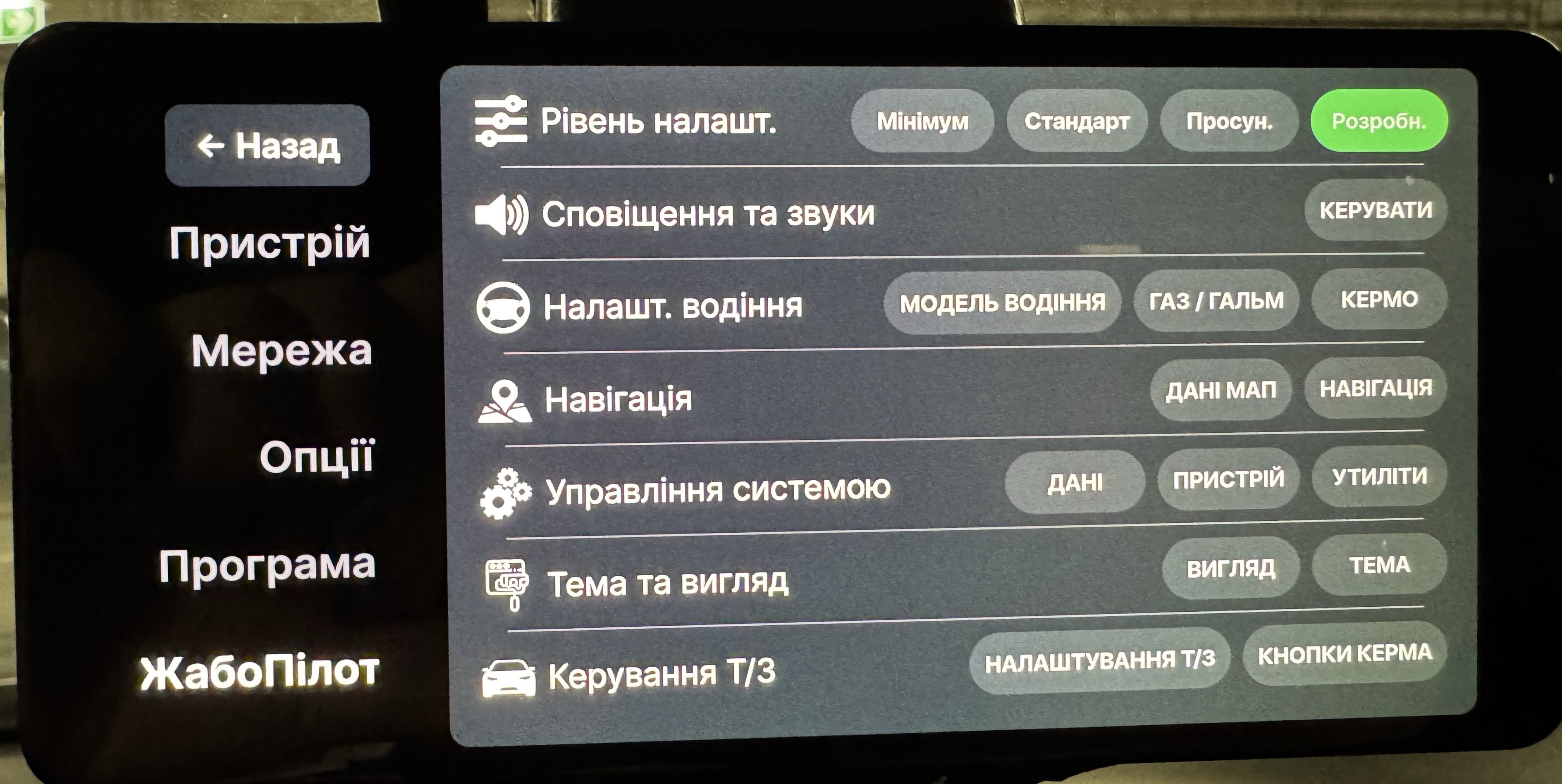

Translating a large C++/Qt project like OpenPilot is not only about .ts files — it also requires rethinking how runtime messages are generated and displayed. The result is a much more user-friendly interface, now available in Ukrainian, with groundwork laid for other languages.
